Genome Architecture and Biosynthetic Diversity in Streptomyces silvae

The four analyzed genomes are highly similar at species level, but differ in assembly contiguity, functional gene distribution, and biosynthetic architecture.

This page brings together circular genome maps, assembly statistics, functional category profiles, and antiSMASH-based BGC comparisons to distinguish conserved genomic features from strain-level variation within the S. silvae clade.

Key findings Jump to BGC analysis

Key findings

Species-level similarity

Genome sizes are closely matched at 8.1–8.3 Mb, with GC contents of 71.3–71.43 %, supporting classification within the same species framework.

Assembly differences

M3 provides the most contiguous assembly, whereas the remaining strains are more fragmented despite overall genomic similarity.

Functional variation

Broad functional profiles are shared, but tRNA/rRNA counts and selected annotated categories differ between strains.

Biosynthetic diversification

A conserved BGC core is present across all genomes, while additional loci vary in class assignment, similarity, or strain-specific occurrence.

Strains included

  • Streptomyces silvae TMS12I2
  • Streptomyces silvae TMS4I1
  • Streptomyces silvae For3T – type strain
  • Streptomyces sp. M3

Circular genome maps

The circular maps summarize chromosome organization, annotation density, RNA gene positions, resistance-related loci, GC skew, and GC content across the four genomes.

Circular genome maps of four S. silvae strains

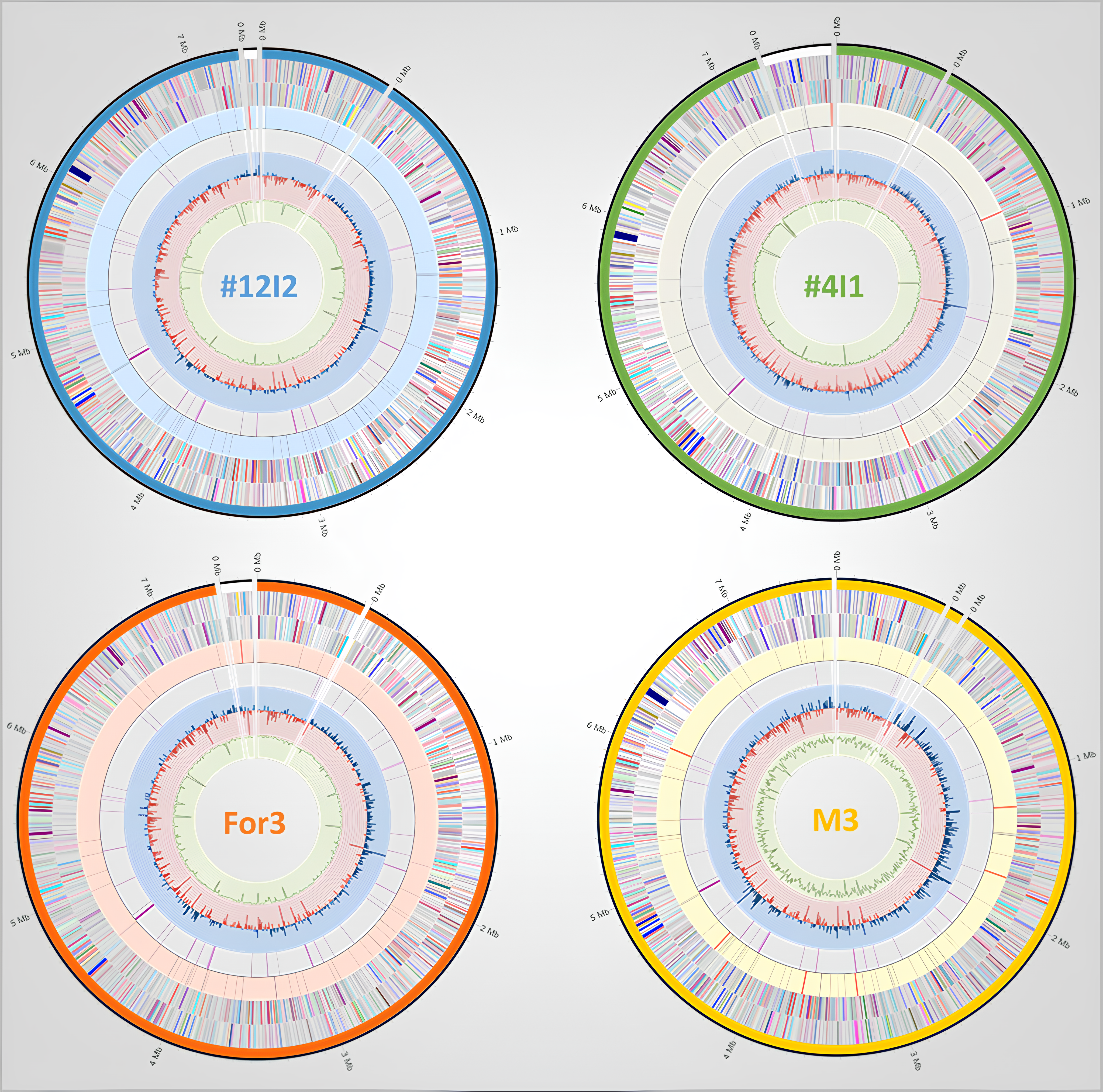

Figure 1. Circular genome maps of S. silvae TMS12I2, TMS4I1, For3T, and M3, summarizing contig organization, coding sequences, RNA genes, resistance-associated loci, GC skew, and GC content.
Open full-size figure

The overall map architecture supports close relatedness across the clade, while local differences in contig structure and feature distribution point to strain-level genomic variation rather than species-level separation.

Genome statistics and assembly quality

Genome size and GC content remain highly consistent across all strains, but assembly quality and selected annotation metrics differ and help define intraspecific variation.

Genome statistics and assembly parameters of S. silvae strains
Table 1. Selected assembly and annotation parameters for TMS12I2, TMS4I1, For3T, and M3, including contig number, genome size, N50/L50, completeness, coding sequences, RNA genes, resistance genes, and GC content.
Open full-size figure
Main takeaway

The genomes remain very similar in overall size and base composition, reinforcing their close taxonomic relationship within S. silvae.

Assembly contrast

M3 stands out as the most contiguous assembly, with only three contigs, the highest N50 value, and an L50 of 1.

Differences in tRNA and rRNA copy number suggest that the strains are not functionally identical and may differ in translational capacity or ecological adaptation despite their shared genomic framework.

Functional category distribution

RASTtk-based functional profiles allow comparison of how annotated gene content is distributed across major SEED categories in the four genomes.

Circular representation of gene numbers per functional category in Streptomyces silvae strains
Figure 2. Circular representation of gene numbers per functional category across the four genomes, based on RASTtk annotation and SEED functional assignments.
Open full-size figure
Reading the figure

Each concentric ring represents one genome. Segment size reflects the absolute number of genes assigned to a given functional category.

SEED color code
Nucleosides and nucleotides
Amino acids and derivatives
Protein metabolism
Sulfur metabolism
Cell division and cell cycle
Phosphorus metabolism
Motility and chemotaxis
Carbohydrate metabolism
Regulation and cell signaling
Cofactors, vitamins, prosthetic groups and pigments
Secondary metabolism
Cell wall and capsule
DNA metabolism
Virulence, disease and defense
Fatty acids, lipids and isoprenoids
Potassium metabolism
Nitrogen metabolism
Miscellaneous
Dormancy and sporulation
Phages, prophages, transposable elements and plasmids
Respiration
Membrane transport
Stress response
Iron acquisition and metabolism
Metabolism of aromatic compounds
RNA metabolism
Interpretation

The four strains share a broadly similar functional landscape, consistent with their close relatedness and similar genome size.

Most notable difference

TMS4I1 shows elevated gene numbers in several metabolic categories, whereas TMS12I2, For3T, and M3 remain more similar to one another.

Methods summary

Genome scaffolding was performed with RagTag using Streptomyces sp. M3 as reference. Genome annotation was generated with RASTtk, and circular visualizations were prepared with Circos.

Biosynthetic gene cluster distribution

antiSMASH-based comparison shows that the S. silvae clade retains a conserved biosynthetic backbone while varying at selected loci in class assignment, similarity to reference clusters, and strain-specific presence or absence.

Circular representation of BGCs in S. silvae strains
Figure 3. Circular comparison of antiSMASH-identified biosynthetic gene clusters across TMS12I2, TMS4I1, For3T, and M3.
Open full-size figure
Reading the figure

The plot compares chromosomal positions and class assignments of BGCs across the four genomes and highlights both shared and divergent biosynthetic loci.

antiSMASH biosynthetic classes
RiPP-like; class II and III lanthipeptides
β-Lactams
Butyrolactones
Ectoine
PKS: type II and III; hglE-KS; hglE-KS with T1PKS
NAPAA; NRPS; NRPS with NRP-metallophores
T1PKS; T2PKS/NRPS with terpenes; butyrolactone; NRPS; hglE-KS; hybrid NRPS, T3PKS, PKS- and NRPS-like
Class I lanthipeptides
Melanin
Siderophores
Terpenes
Comparison of antiSMASH-detected BGCs across four S. silvae strains
Table 2. Comparative overview of antiSMASH-detected BGCs and their similarity to reference clusters across the four genomes.
Open full-size figure
Shared core

All four genomes contain identical core clusters for alkylresorcinol, desferrioxamine B, ectoine, isorenieratene, and melanin.

Variable loci

Several additional clusters are shared but differ in similarity values or class assignment, indicating moderate divergence at selected genomic positions.

Strain-specific features

TMS12I2 and TMS4I1 each carry additional distinctive loci not mirrored in exactly the same way by the other strains.

Interpretation of BGC variation

The BGC comparison reveals a strongly conserved biosynthetic backbone across the S. silvae clade. Beyond the fully identical core clusters, ten further loci are shared by all strains, although their similarity to known reference clusters ranges from very low to comparatively high values.

Divergence becomes most visible at selected corresponding loci, especially in the genomic region positioned roughly between 4 and 5 o’clock in the circular plot. There, antiSMASH assigned different biosynthetic classes despite substantial underlying relatedness. In TMS12I2, the corresponding region lacks genes associated with butyrolactone biosynthesis and shows 77 % similarity to the maduralactomycin A cluster, whereas the related loci in TMS4I1, For3T, and M3 initially match prejadomycin at lower levels. Additional BLAST- and subcluster-based analyses nevertheless indicate that these regions remain broadly related overall.

Further strain-specific differences reinforce this pattern. TMS12I2 contains a unique cluster with 8 % similarity to an arseno-polyketide and lacks clusters related to stenothricin and griseobactin that are present elsewhere. TMS4I1 contains additional loci related to kinamycin (25 %) and nataxazole (7 %). Overall, biosynthetic divergence within the clade is real but moderate: the strains vary at selected loci while retaining a clearly shared biosynthetic framework.
